Important notices and safety information:

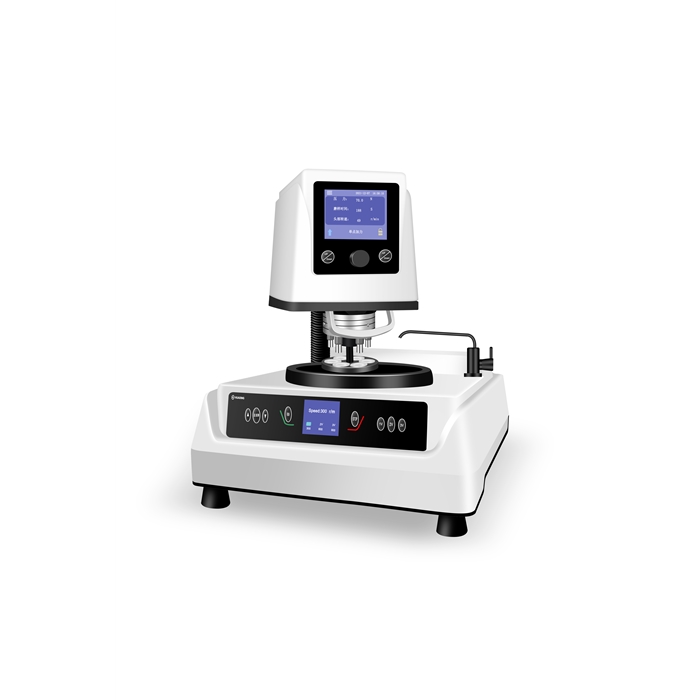

LMP-4 Automatic grinding and polishing machine is a single-disc desktop grinding and polishing machine. According to international standards, it adopts international advanced technology to develop and manufacture a new type of grinding and polishing equipment that integrates center afterburner and single-point afterburner.
The rotation direction of the grinding and polishing disk can be selected arbitrarily, and the grinding and polishing disk can be quickly replaced; the multi-sample clamp tester, and the specific pneumatic single-point loading and center loading functions. This machine adopts an advanced microprocessor control system, which makes the rotation speed of the grinding and polishing disc and the grinding and polishing head infinitely adjustable, and the setting of sample preparation pressure and time is intuitive and convenient. Only need to replace the grinding and polishing disc or sandpaper and fabric to complete the grinding and polishing process. So that the machine shows a wider range of applications. It has the characteristics of stable rotation, safety and reliability, low noise and the use of cast aluminum base to increase the rigidity of grinding and polishing.
The electromagnetic lock of the grinding head of the machine has the automatic locking function, which is safe and convenient. With a water cooling device, the sample can be cooled during grinding to prevent damage to the metallographic structure due to overheating of the sample, and the abrasive grains can be washed away at any time. Beautiful and elegant, and improved anti-corrosion, anti-rust performance and easy to clean.
It is suitable for automatic sample preparation in the process of rough grinding, fine grinding, rough polishing to fine polishing of metallographic samples. It is an ideal sample preparation equipment for enterprises, scientific research units and laboratories of colleges and universities
Main Specifications:
| Grinding and polishing disc diameter | φ250mm（φ230mm、φ300mm can be customized） |
| Grinding and polishing disc speed | 50-1000 r/min（Stepless speed regulation）and 300 / 600 / 900 r/min（Level 3 fixed speed） |
| Grinding and polishing disc steering | Adjustable forward and reverse options |
| Grinding head speed | 5-150 r/min（Stepless speed regulation） |
| Number of prepared samples | 4 pcs |
| Input air source | 0.4-0.7Mpa |
| Sample preparation time | 0-3000 S |
| Sample preparation pressure | Single Point 20-70N center 150-300N |
| Specimen Diameter | Factory standardφ30mm（φ22-φ45mm） |
| Input voltage | Single-phase 220V 50Hz |
| Input power | 1.1KW |
| Dimensions | 550*760*640mm |
| Net weight | 60KG |
Packing List:
| Name | Specification | Unit | Quantity | Remark |
| Automatic grinding and polishing machine | LMP-4 | Set | 1 | |
| Product Manual | Set | 1 | ||
| Product certification | Pcs | 1 | ||
| Packing List | Pcs | 1 | ||
| Polishing cloth | Φ250mm | Pcs | 2 | |
| Metallographic sandpaper | Φ250mm | Pcs | 8 | |
| Grinding and polishing disc | Φ250mm | Pcs | 2 | |
| Aluminum buckle | Φ250mm | Pcs | 2 | |
| Drain pipe | Pcs | 1 | ||
| Water inlet pipe | Pcs | 1 | ||
| Pressure tube | Φ8*3000mm | Pcs | 1 | |
| Water separator | Pcs | 1 | ||
| Magnetic disk | Pcs | 2 | ||
| Anti-stick plate | Pcs | 5 | ||
| Level the feet | Pcs | 4 | ||
| Power cable | Pcs | 1 | ||
| Dust cover | Pcs | 2 | ||
| Center clamping plate | Pcs | 1 | ||
| Single-point clamping disc | Pcs | 1 | ||
| Water retaining ring | Pcs | 2 |
